BX403R

Mountain  /  Boost

specification

STRAIGHT PULL

Spoke System :
Straight Pull
Hole Count :
24
Weight :
261g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (6902*2+6802+6902)
P.C.D :
ø 39 - ø 52
Axle System :
12M / 148mm

Axle Options

M10x141mm


49g (Alloy)


FreeHub Body Options

Shimano 10/11s
80g (Alloy 7075)
Shimano 12s
74g (Alloy 7075)
XD 11s
72g (Alloy 7075)

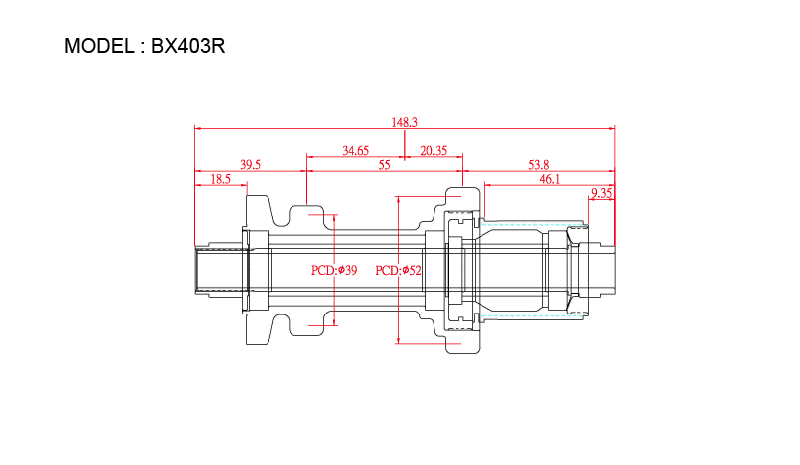

Products Drawing Download
