FB-MTF15-20-150mm

Fat Bike

specification

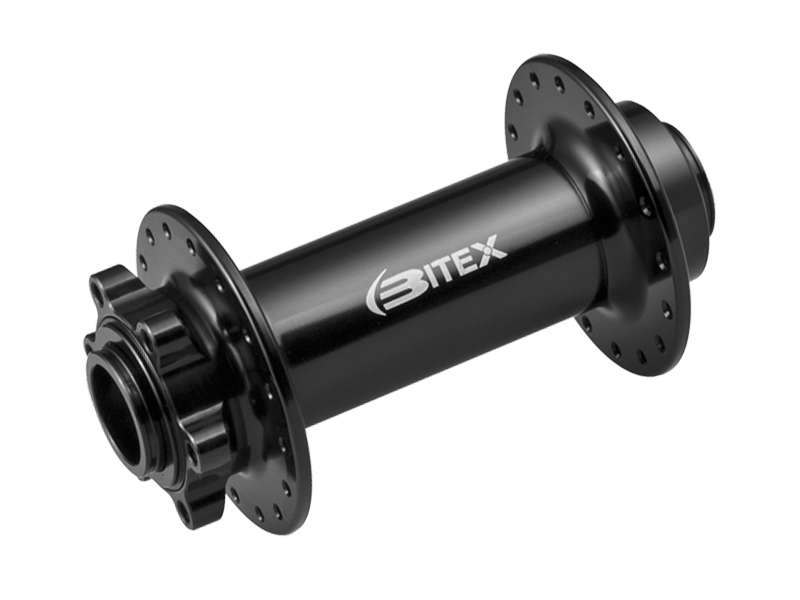

4 in 1 Fat Bike Font hub.

Brake Interface :
Disc(6-bolts)
Spoke System :
J-Bend
Hole Count :
32, 36
Weight :
258g  ±  5g (15Mx150mm)
Material :
Aluminum
Gauge :
14
Bearings :
2 (6804*2)
P.C.D :
ø 58 - ø 58

End cap Options

M9(QR)x150mm
26g (Alloy 7075)
12Mx150mm
28.5g (Alloy 7075)
15Mx150mm
20.5g (Alloy 7075)
20Mx150mm
10.5g (Alloy 7075)

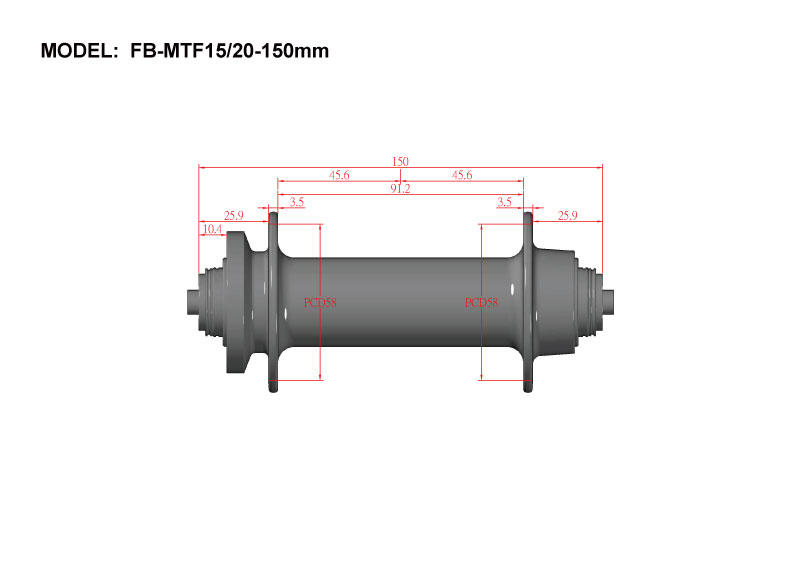

Products Drawing Download
