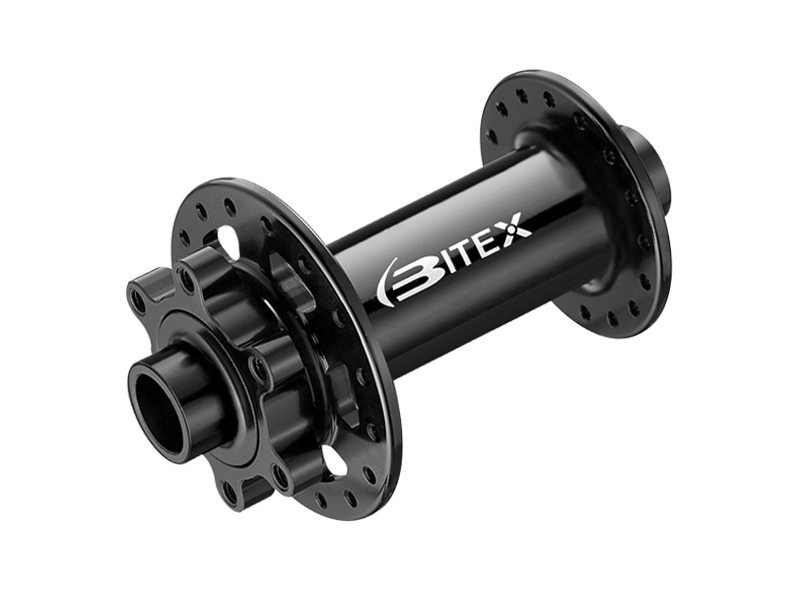

BX201FG

MTB

specification

Brake Interface :
Disc(6-bolts)
Spoke System :
J-Bend
Hole Count :
24, 28, 32
Weight :
127g  ±  5g (12M)
Material :
Aluminum
Gauge :
14
Bearings :
2 (6803*2)
P.C.D :
ø 58 - ø 45

End cap Options

M9x100mm
11g (Alloy 7075)
12Mx100mm
6g (Alloy 7075)
15Mx100mm
6g (Alloy 7075)

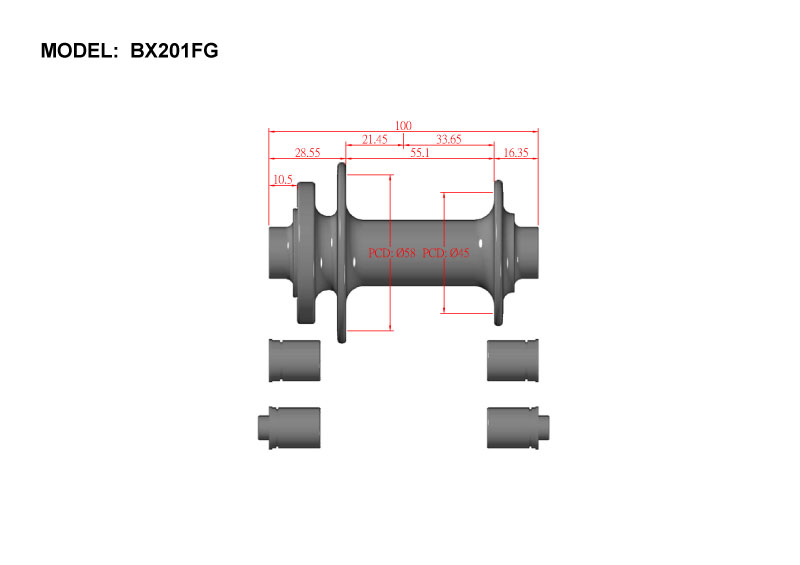

Products Drawing Download
