Products

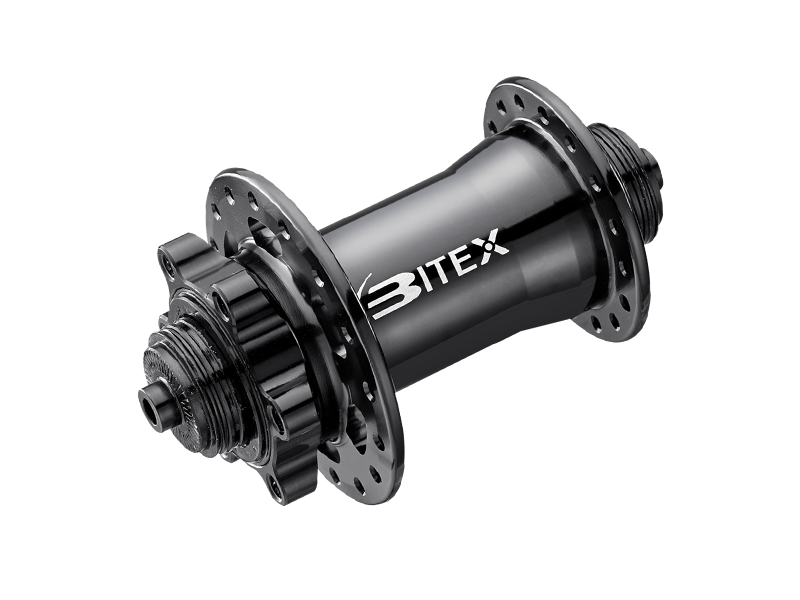

BX207F

MTB

specification

WEIGHT :
M9 - 222 ± 5g
12M - 227 ± 5g
15M - 216 ± 5g

Brake Interface :
Disc(6-bolts)
Spoke System :
J-Bend
Hole Count :
24, 28, 32
Weight :
226g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (6804*4)
P.C.D :
ø 58 - ø 45

End cap Options

M9(QR)x100mm
31.5g (Alloy 7075)
12Mx100mm
36g (Alloy 7075)
15Mx100mm
26g (Alloy 7075)

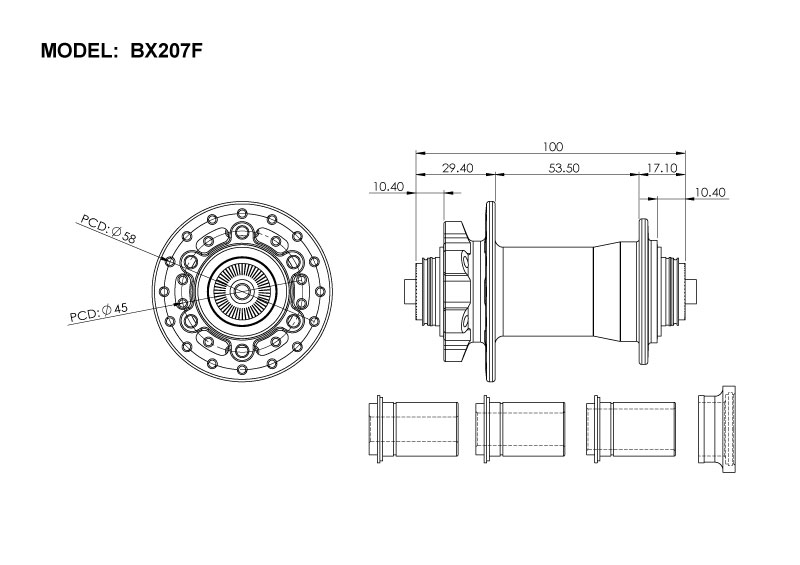

Products Drawing Download
