BX314R

Road

specification

STRAIGHT PULL

Brake Interface :
V Brake
Spoke System :
Straight Pull
Hole Count :
7/14, 8/16
Weight :
212g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (Hub 6802*2 / Freehub 6802*2)
P.C.D :
ø 27 - ø 49
Axle System :
M10(QR) x 130mm

FreeHub Body Options

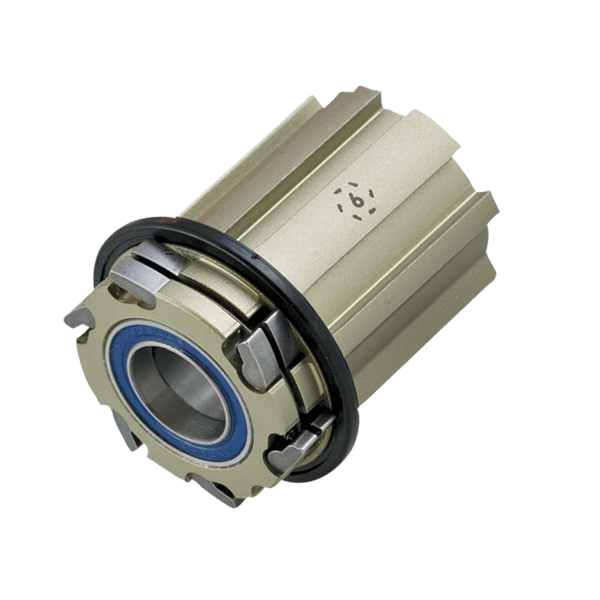

Shimano 10/11s
70g  ±  5g (Aluminum 7075)
Campy 10/11/12s
74g  ±  5g (Aluminum 7075)

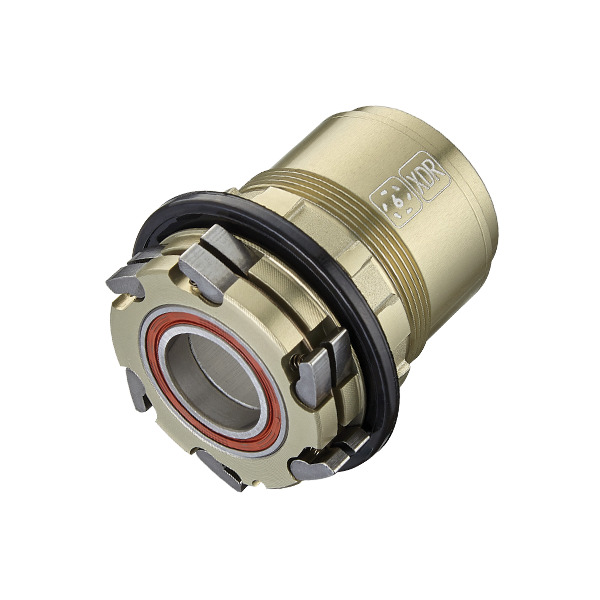

XDR 11s/ 12s
68g  ±  5g (Aluminum 7075)

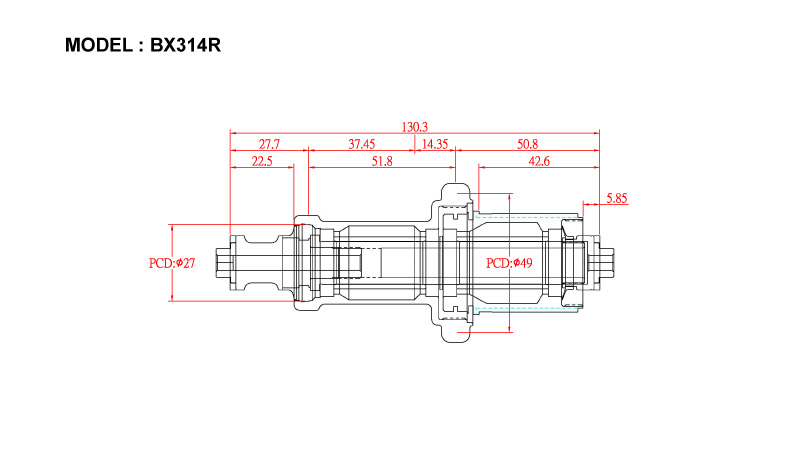

Products Drawing Download
