Products

BX320R

Carbon spoke

specification

Brake Interface :
CenterLock
Spoke System :
Straight Pull
Hole Count :
24
Weight :
207g  ±  5g
Material :
Aluminum 7075
Gauge :
4.2
Bearings :
4 ( Hub 6802+6902 / Freehub 6802*2 )
P.C.D :
ø 37.5 - ø 52
Axle System :
12M x 142mm

FreeHub Body Options

Shimano 10/11s
77g  ±  5g (Aluminum 7075)
XDR 11s/ 12s
68g  ±  5g (Aluminum 7075)
N3W
70.7g  ±  5g (Aluminum 7075)
Campy 10/11/12s
74g  ±  5g (Aluminum 7075)

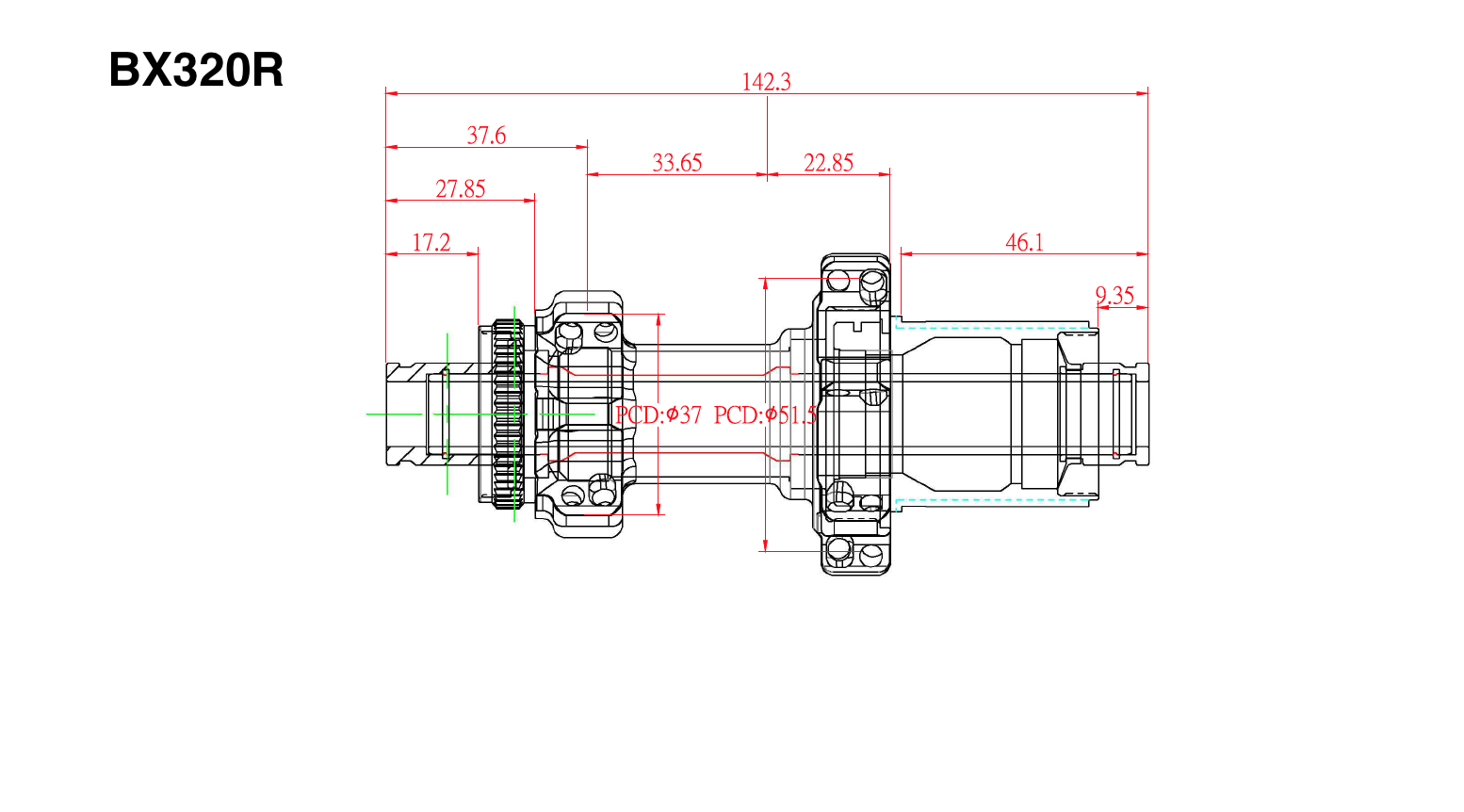

Products Drawing Download
