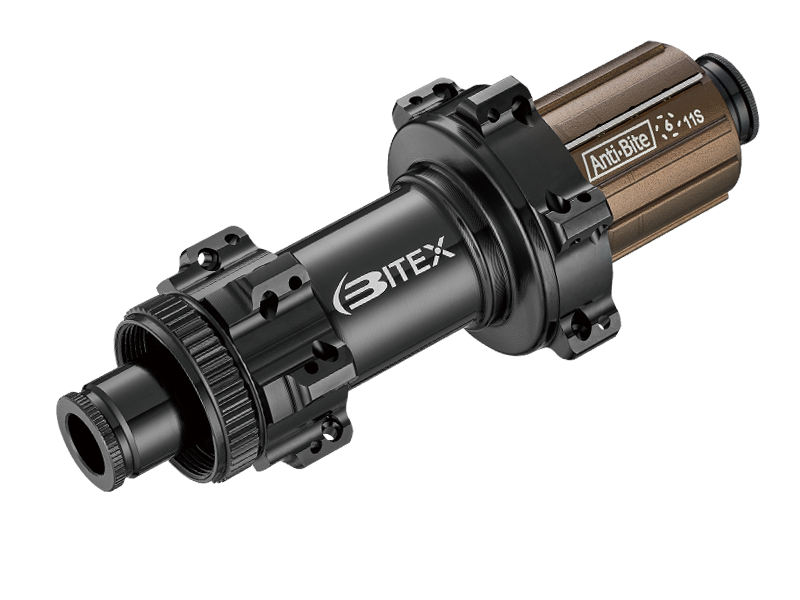

BX405R

Boost

specification

Brake Interface :
CenterLock
Spoke System :
Straight Pull
Hole Count :
24, 28
Weight :
312g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4(Hub 6902*2 / Freehub 6802+6902)
P.C.D :
ø 39 - ø 54
Axle System :
12M x 148mm  -  86g (Steel)

FreeHub Body Options

Shimano 12s
74g  ±  5g (Aluminum 7075)
Shimano 10/11s
80g  ±  5g (Aluminum 7075)
XD 11s / 12s
72g  ±  5g (Aluminum 7075)

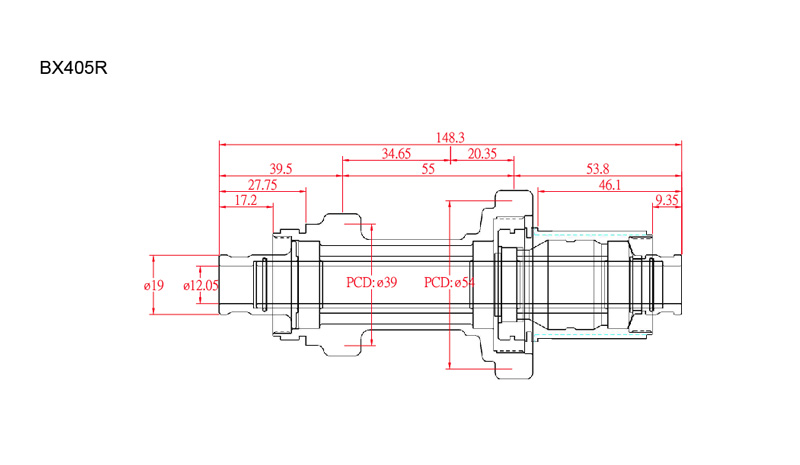

Products Drawing Download
