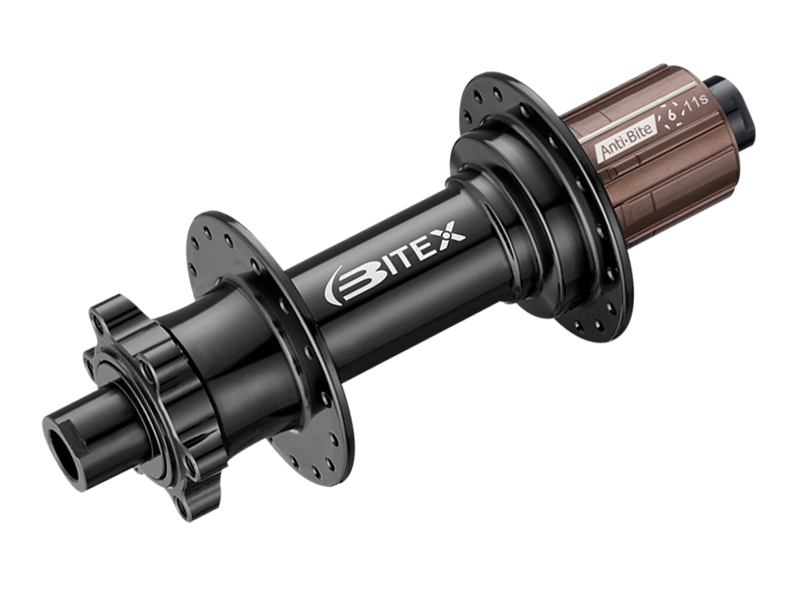

FB-MTR12-170-177

Mountain  /  Fat Bike

specification

QR | Skewer
M10*190mm(OLD:170mm)-Rear

QR | Skewer : For Sram(w/o. Nut)
12mm*202B(OLD:170mm)-Rear
12mm*209B(OLD:177mm)-Rear

SIZE | Skewer : For Shimano(w/Nut)
12mm*200B(OLD:170mm)-Rear
12mm*207B(OLD:177mm)-Rear

Spoke System :
J-Bend
Hole Count :
32, 36
Weight :
323g  ±  5g
Material :
Aluminum
Gauge :
14
Bearings :
4 (6902*3+6802*1) - Hub(6902*2) freehub body(6802+6902)
P.C.D :
ø 58 - ø 58

End cap Options

M10x177mm
23g (Alloy 7075)
12Mx170mm
11g (Alloy 7075)
12Mx177mm
13g (Alloy 7075)

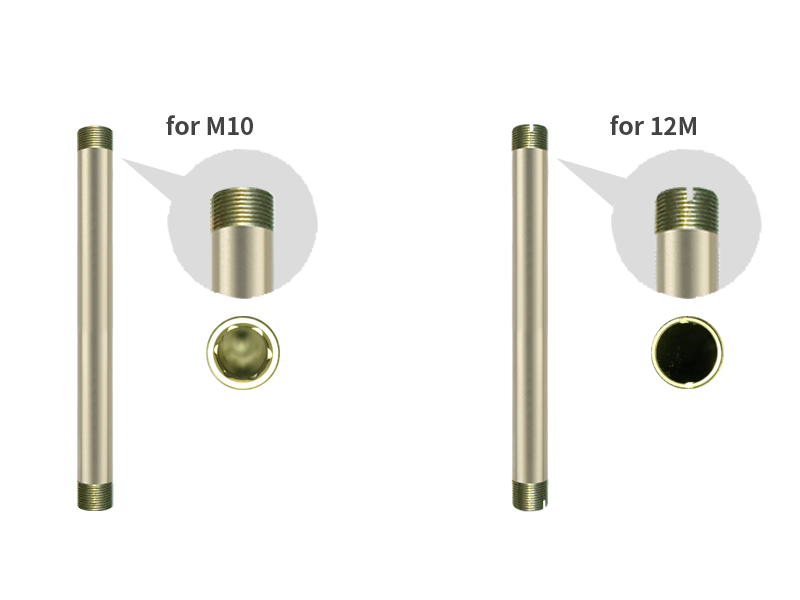

Axle Options

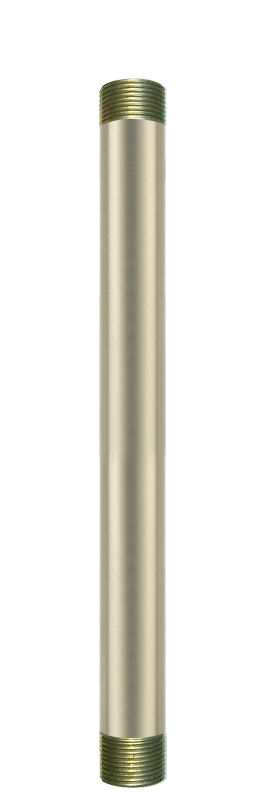

For M10


57g (Axle:Alloy)

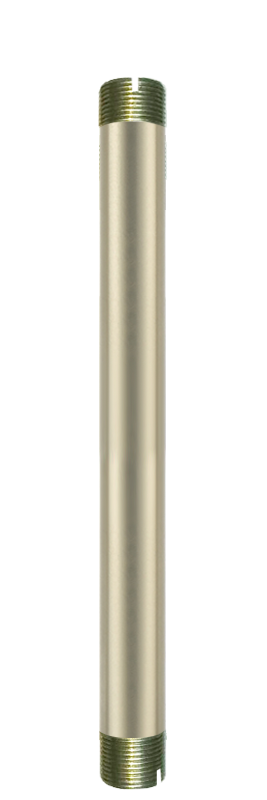

For 12M


38g (Axle:Alloy)


FreeHub Body Options

Shimano 10/11s
80g (Alloy 7075)
Shimano 12s
74g (Alloy 7075)
XD 11s
72g (Alloy 7075)

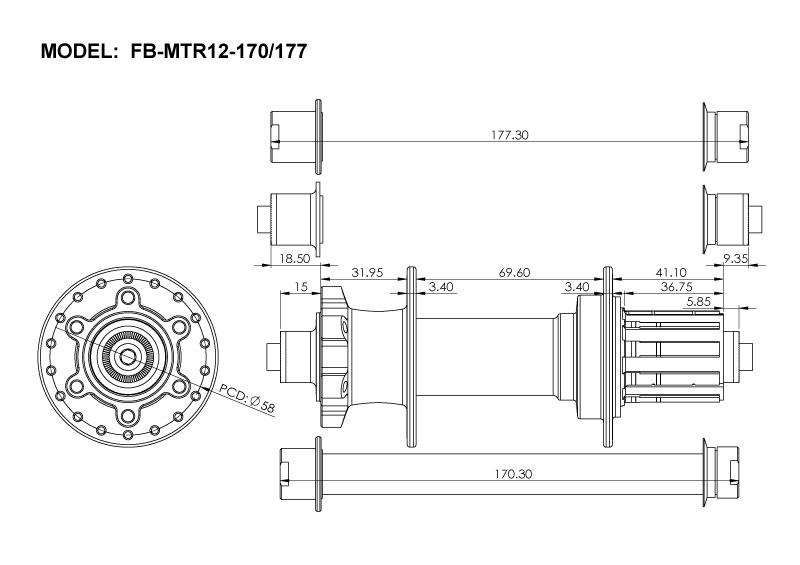

Products Drawing Download
