FB-MTR12-190-197

Mountain  /  Fat Bike

specification

QR | Skewer
M10*210mm(OLD:190mm)-Rear

QR | Skewer : For Sram(w/o. Nut)
12mm*220B(OLD:190mm)-Rear
12mm*229B(OLD:197mm)-Rear

SIZE | Skewer : For Shimano(W/Nut)
12mm*220B(OLD:190mm)-Rear
12mm*227B(OLD:197mm)-Rear

Spoke System :
J-Bend
Hole Count :
32, 36
Weight :
347g  ±  5g (12Mx197mm)
Material :
Aluminum
Gauge :
14
Bearings :
4 (6902*3+6802*1) - Hub(6902*2) freehub body(6802+6902)
P.C.D :
ø 58 - ø 58
Axle System :
For M10  -  62g (Alloy)
For 12M  -  41g (Alloy)

End cap Options

M10(QR)x197mm
23g (Alloy 7075)
12Mx190mm
11g (Alloy 7075)
12Mx197mm
13g (Alloy 7075)

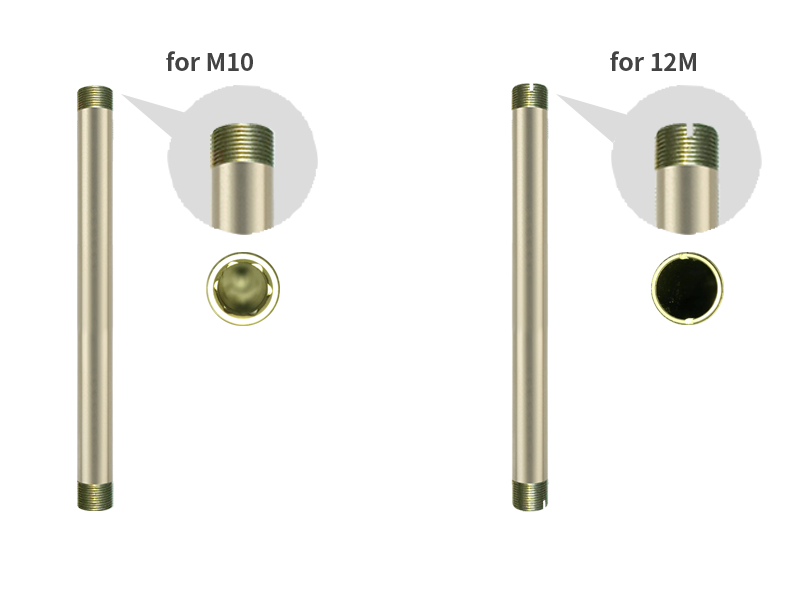

Axle Options

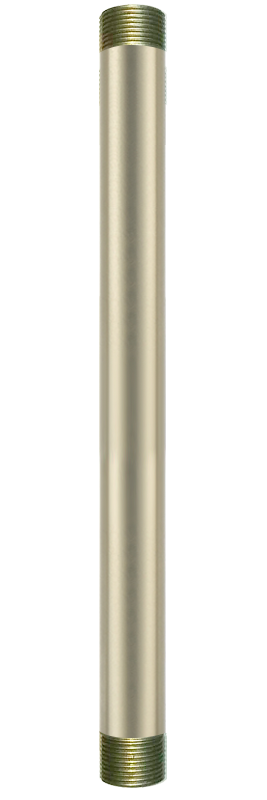

For M10


62g (Alloy)

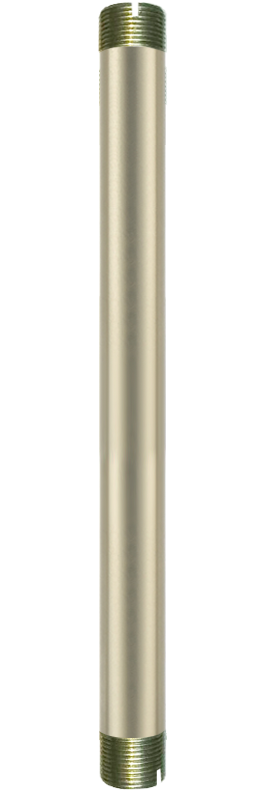

For 12M


41g (Alloy)

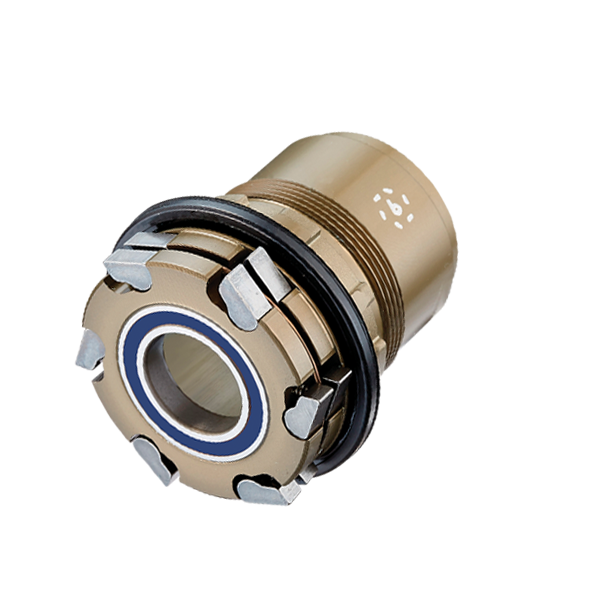

FreeHub Body Options

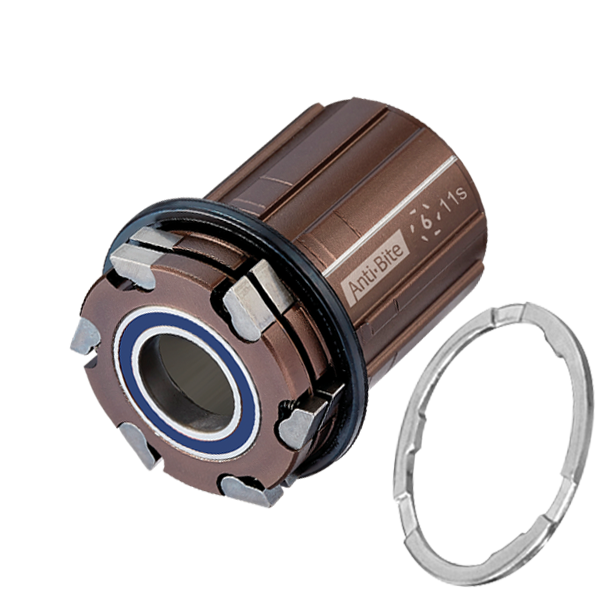

Shimano 10/11s
80g (Alloy 7075)
XD 11s / 12s
72g (Alloy 7075)
Shimano 12s
74g  ±  5g (Alloy 7075)


Products Drawing Download
