RAR16
Road
specification
- Brake Interface :
- V Brake
- Spoke System :
- J-Bend
- Hole Count :
- 24, 28, 32
- Weight :
-
226g
±
5g
- Material :
- Aluminum
- Gauge :
- 14
- Bearings :
- 4 (Hub 6802+6902 / Freehub 6802+6902)
- P.C.D :
-
ø
50.6
-
ø
50.6
- Axle System :
-
M10(QR) x 130mm
-
45g
(Alloy)
-
M10(QR) x 135mm
-
47g
(Alloy)
End cap Options
M10(QR)x130mm
10g
(Alloy 7075)
M10(QR)x135mm
12g
(Alloy 7075)
FreeHub Body Options
Shimano 10/11s
77g
±
5g
(Aluminum 7075)
Campy 10/11/12s
74g
±
5g
(Aluminum 7075)
XDR 11s/ 12s
68g
±
5g
(Aluminum 7075)

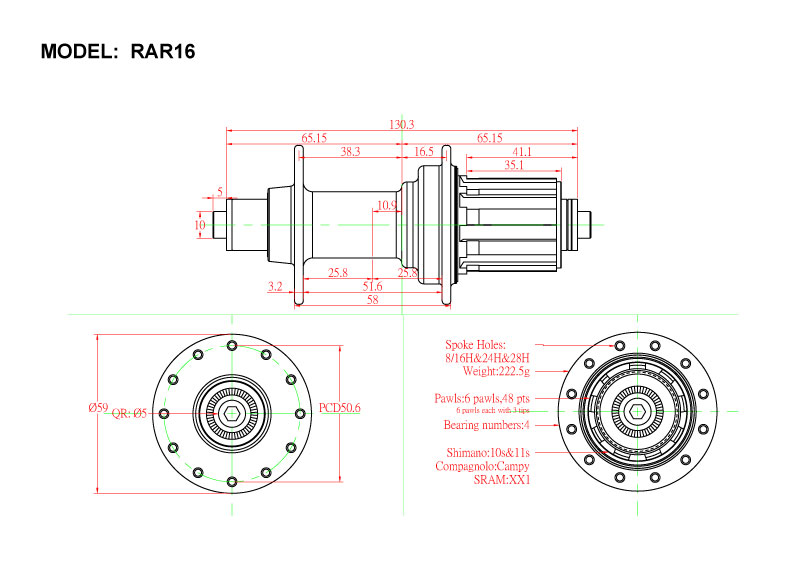

Products Drawing
Download
